SPECIFICATIONS

Battery Included: No

Brand Name: MGYR,EURPAW

Display screen: 7" LCD touch screen

ETCO2: Integrated ETCO2

Flowmeter: Electronic and Mechanical flowmeter

Freq: 1 bpm - 100 bpm

Gas source: O2 , N2O, AIR

High-concerned chemical: None

Model Number: DM6B

Origin: Mainland China

PEEP: 0 cmH2O - 30 cmH2O

Place of Origin: Anhui, China

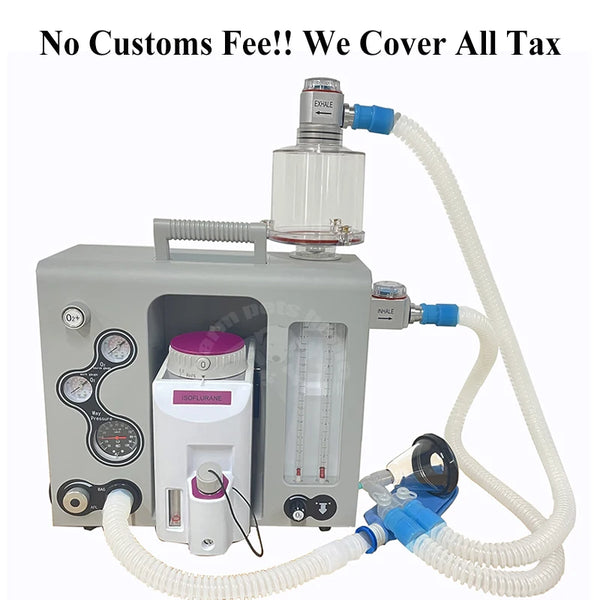

Product name: Veterinary Anesthesia Machine

Properties: Anesthesia

Tidal volume (Vt): 0, 10ml-1500ml

Vaporizer: Isoflurane/Sevoflurane/Halothane/Enflurane

Ventilation modes: IPPV,A/C,PCV,P-SIMV,V-SIMV,SIGH,MANUAL



Who is EURPET?



EURPET is a professional supplier and exporter of veterinary equipment and grooming with more than 15 years experience.

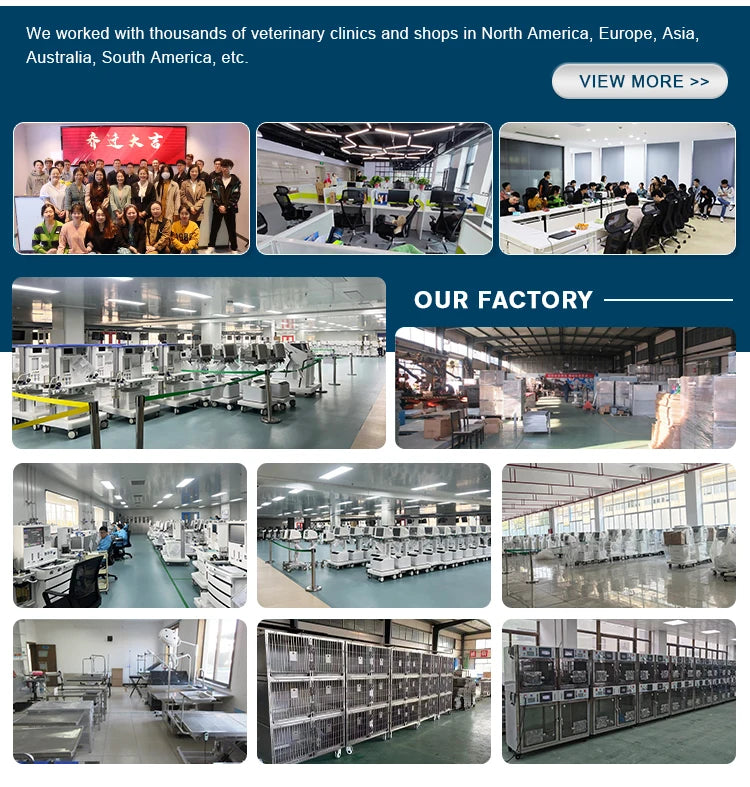

We provide with ONE-STOP solution for veterinary clinic all over the world. We worked with thousands of veterinary clinics and
shops in North America, Europe, Asia, Australia, South America, Mid-east, etc.

We supply: vet surgical tables, vet surgical lights, vet monitors, vet Analyzers, Hight frequency Electrosurgical unit, canine progesteronee machine, Pet descaler, veterinary gastro-colonoscope, Pet incubator, and other grooming products etc.



Product Parameters

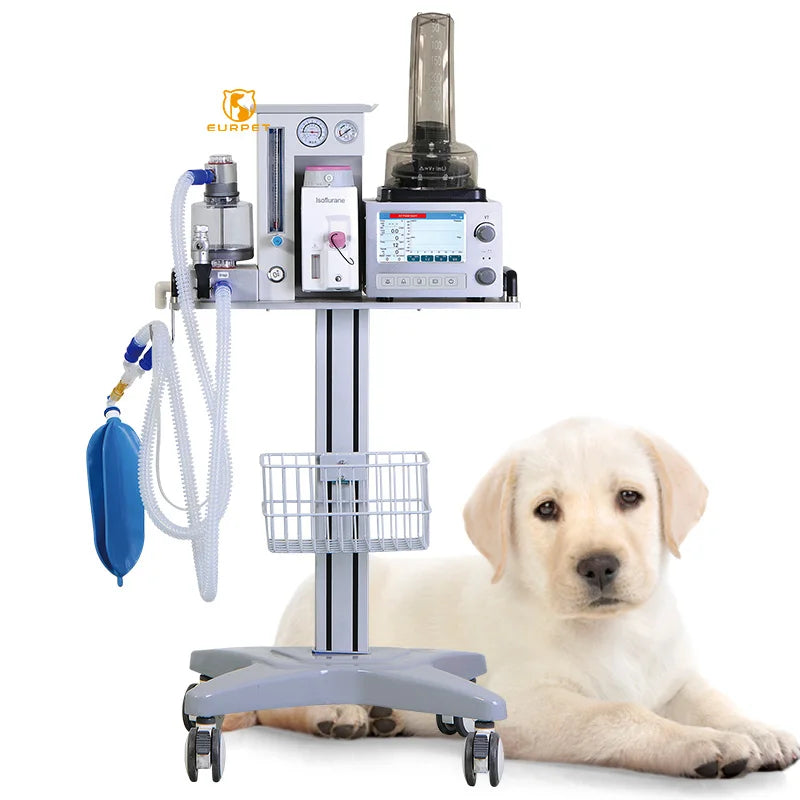

EUR PET Best Selling Veterinary Equipment Anesthesia Pet Clinic Use Anesthesia System Portable Anesthesia Circuits		EURPET Veterinary Stainless Steel Operation Animal Dissection Table Animal Veterinary Ultrasound Exam Table
Ventilation mode
IPPV, A/C, SIMV, SIGH, MANUAL
Ventilator parameter range
Flowmeter	O2 (0～5L/min)
Rapid oxygen supply	25L/min～75L/min
Tidal volume (Vt)	0, 20 mL ～ 1500 mL
Frequence（Freq）	1/min～100/min
I:E	2:1～1:6
Pressure triggering sensitivity (Ptr)	-20 cmH2O～0 cmH2O(Based on PEEP）
Flow trigger sensitivity (Ftr)	0.5 L/min ～ 30 L/min
SIGH	0(off) 1/100 ～ 5/100
Apnea ventilation	OFF，5 s ～ 60 s
Pressure Limit	20 cmH2O ～ 100 cmH2O
Monitoring parameter
Frequence（Freq）	0 /min ～ 100 /min
Tidal volume (Vt)	0 mL ～ 2000 mL
MV	0 L/min ～ 100 L/min
Wooden case size
Main component packing size	L 680*W 840*H 695mm
G.W.	60KG
N.W.	26KG
Accessary packing size	L 650*W 690*H 520mm
G.W.	29KG
N.W.	11KG
Total CBM	0.633

Our advantages:

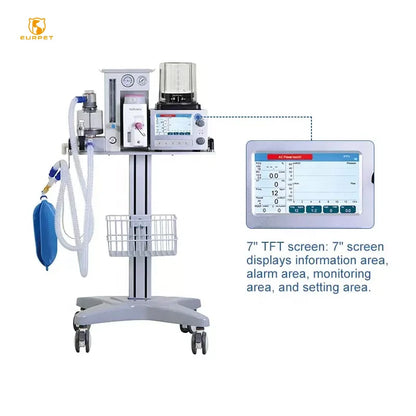

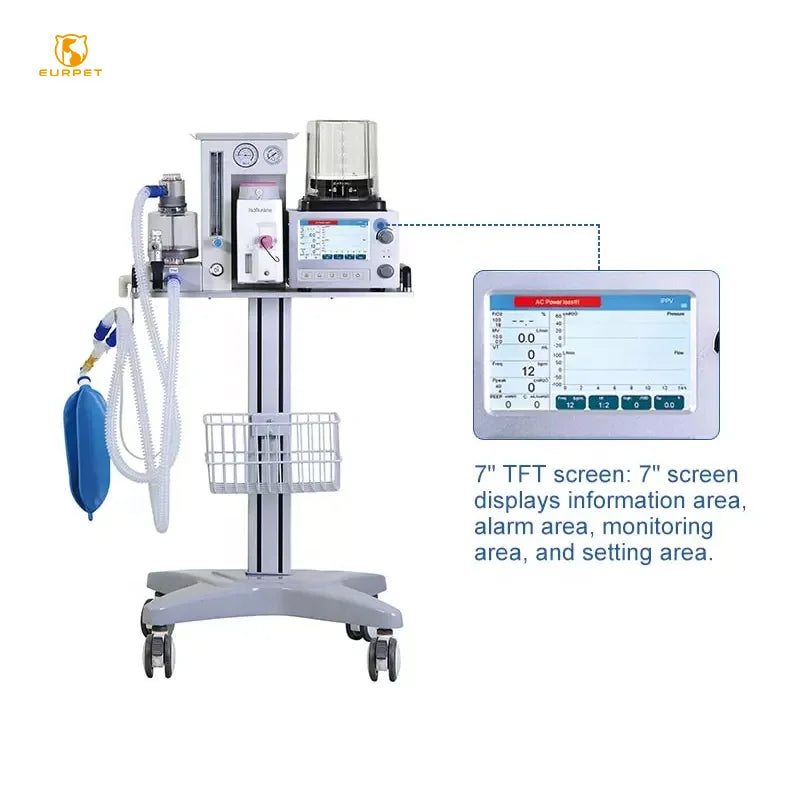

1. 7" screen displays information area, alarm area, monitoring area, and setting area.

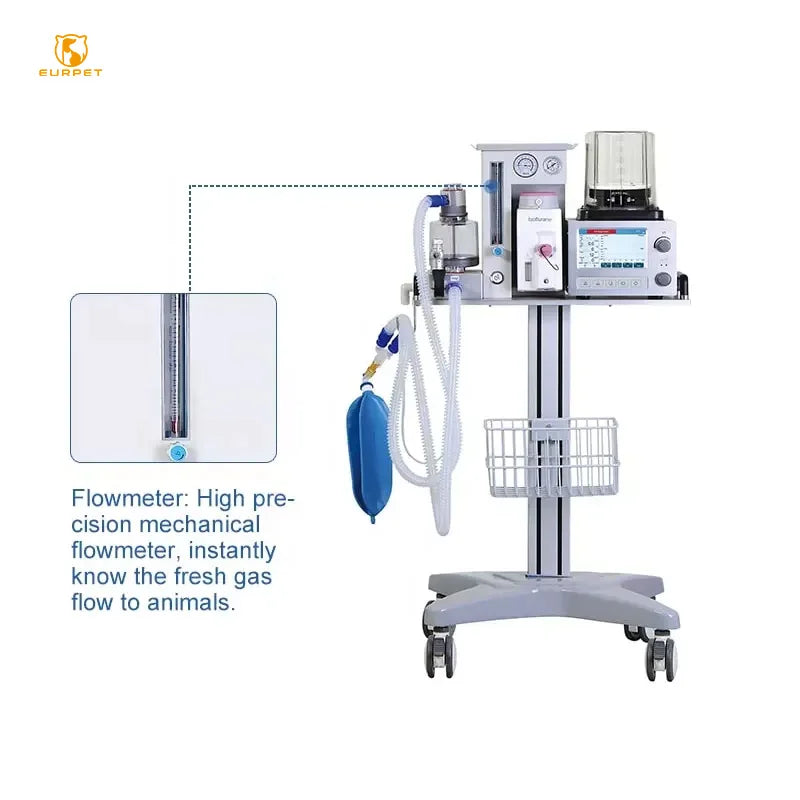

2. High precision mechanical flowmeter, instantly know the fresh gas flow to animals.

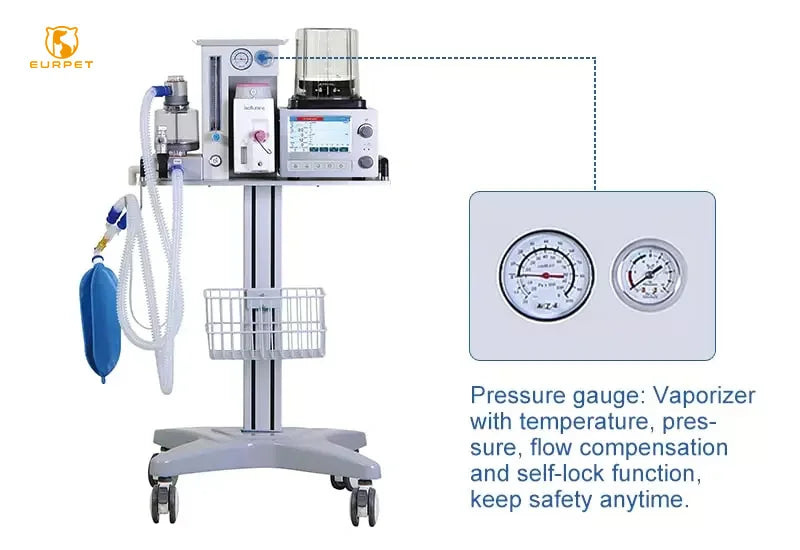

3. Vaporizer with temperature, pressure, flow compensation and self-lock function, keep safety anytime.

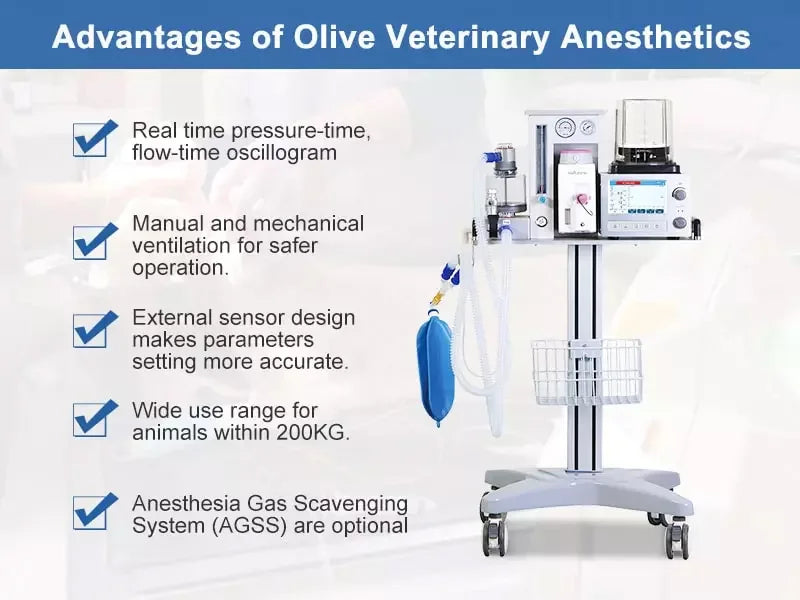

4. Real time pressure-time, flow-time oscillogram

5. Manual and mechanical ventilation for safer operation.
6. External sensor design makes parameters setting more accurate. 7. Wide use range for animals within 200KG.

8. Anesthesia Gas Scavenging System (AGSS) are optional



Application

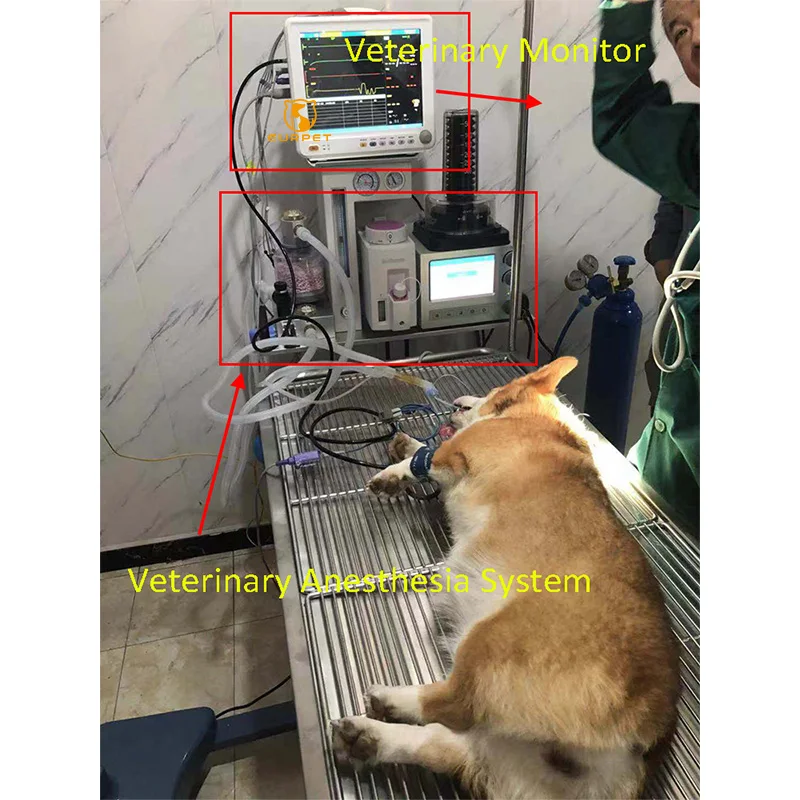

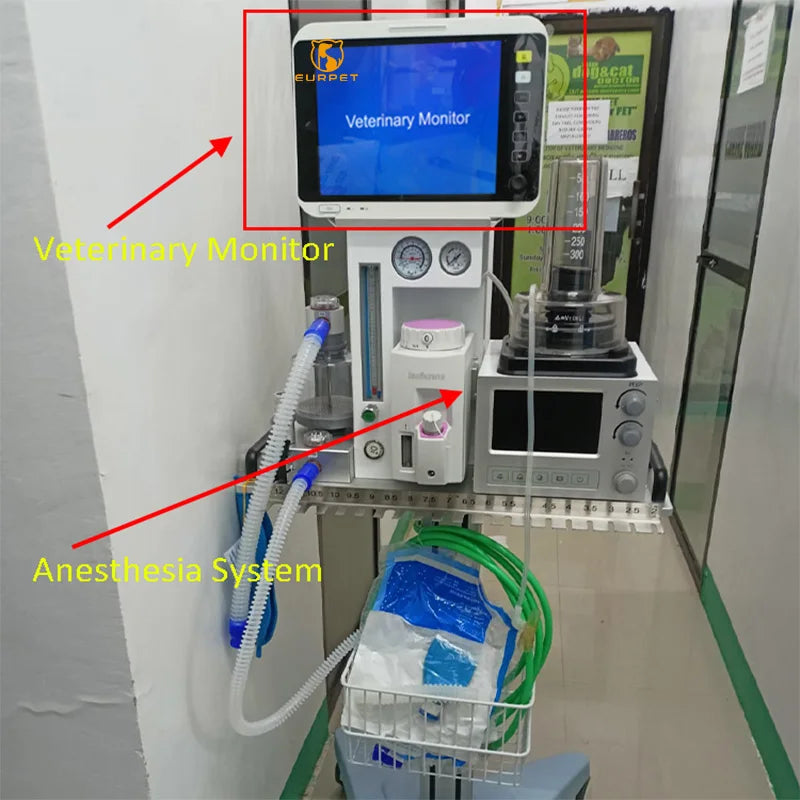

Veterinary Anesthesia System is widely applied to veterinary clinics, hospitals and laboratories, as always received good
reputation from clients around the world.

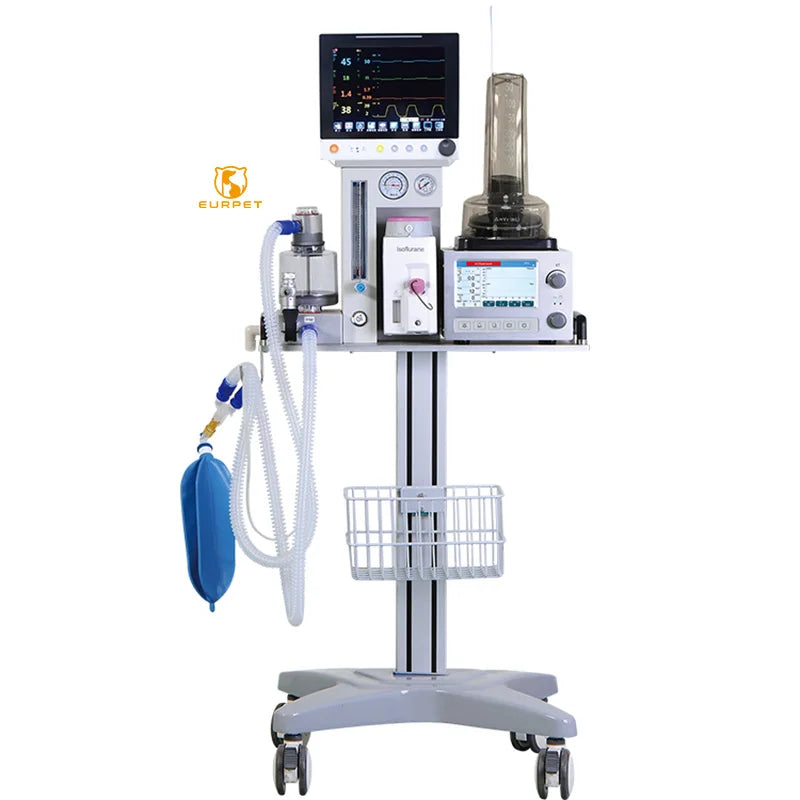

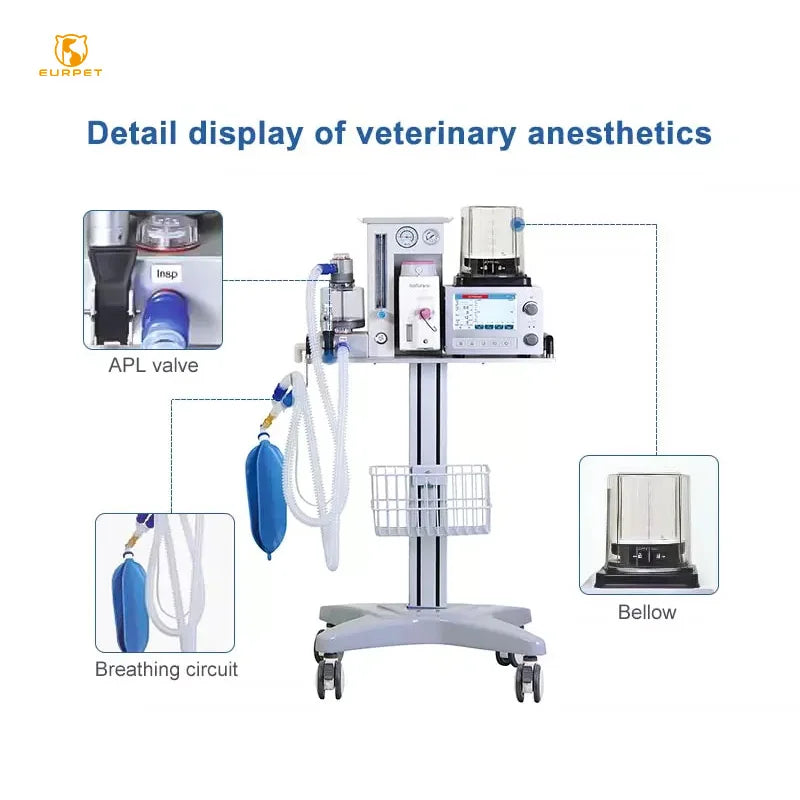

DM6B model designed for safe, simple and controllable inhalation anesthesia for animals. The Veterinary Anesthesia System provides rapid control of anesthetic depth with little resistance to respiration from high to low acuity, simple to complex cases, small to big animals, like Dogs, Cats, Rabbits, Mice, Birds, etc.

Safety

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Trust point

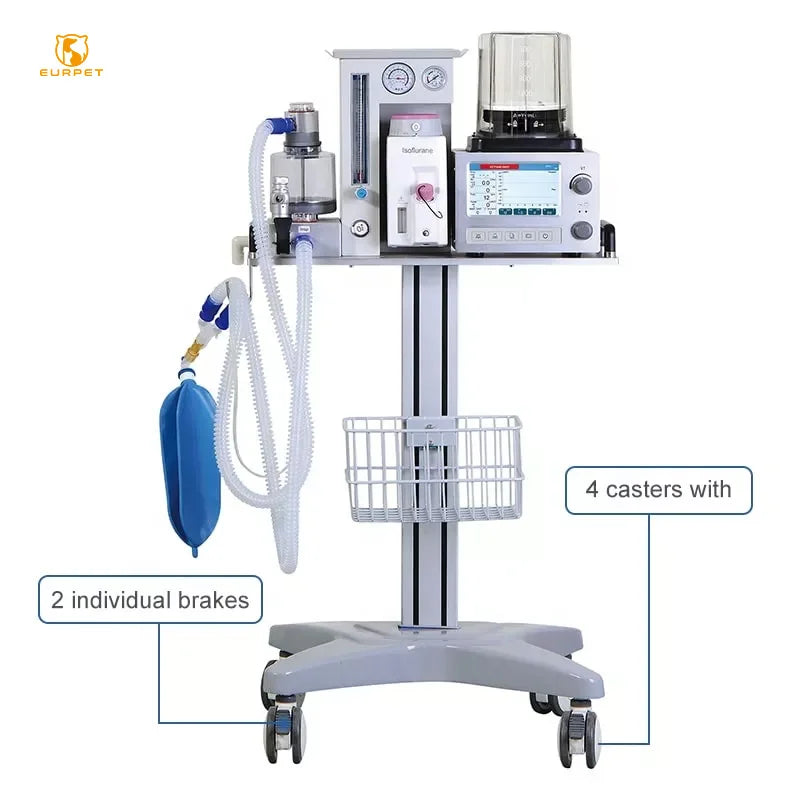

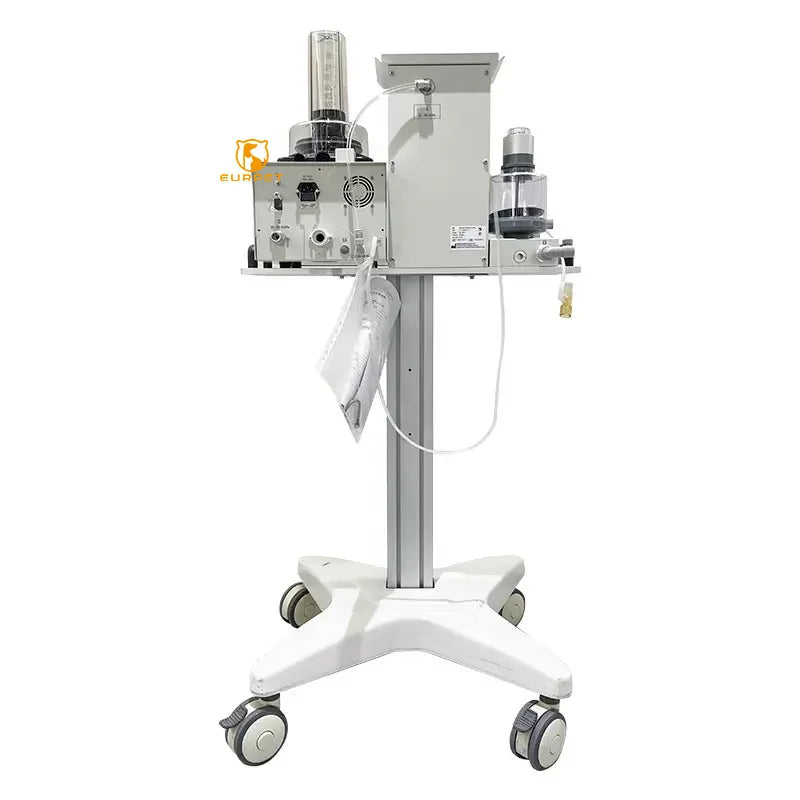

1. 4 casters with 2 individual brakes.

2. Centered ventilation: precision in an anesthesia ventilator with multiple ventilation modes: IPPV, A/C, SIMV, SIGH and MANUAL.

3. Compact interface and 7" TFT LCD screen give you better operating experience.

4. Flexible configurations able to customize your requirements.

5. International standard and advanced technology suitable for wide range use.

6. Over 5,000 units are installed in more than 200 countries.

7. Designed and manufactured by Superstar Medical with over 25 years of experience in veterinary field.

Alarm and protection
The AC power failure alarm	Power failure or no connection
Low voltage alarm for back up battery	＜11.3±0.3V
No tidal volume	≤5mL within 6s
High oxygen concentration alarm	19%-100%
Low oxygen concentration alarm	18%-99%
High airway pressure alarm	20cmH2O-100cmH2O
Low airway pressure alarm	0cmH2O-20cmH2O
High minute volume alarm	1L/min-20L/min
Low minute volume alarm	0L/min-10L/min
Continuous pressure alarm	(PEEP+1.5kPa) over 16s
Suffocation warning	5s-60s no spontaneous ventilation
The maximum limited pressure	＜12.5 kPa
Fan error	Show on screen
Oxygen deficit	Show on screen
Working condition
Gas source	O2
Pressure	280kPa-600kPa
Voltage	100-240V
Power frequency	50/60Hz
Oscillogram
P-T (pressure – time)
F-T (flow – time)
